OEM Braided Copper Busbar
√ High electrical conductivity due to the use of pure copper.
√ Flexibility for easy bending and installation in various configurations.
√ Heat resistance to maintain performance in high-temperature .
√ Corrosion resistance for durability in harsh operating conditions.
√ Reliable performance ensured stringent quality control measures.
Our factory specialize in manufacturing high-quality braided copper busbars tailored to meet diverse industrial needs. Our braided copper busbars feature exceptional flexibility and conductivity, ensuring efficient power distribution in electrical systems. Available in single, double, and triple braided configurations, our busbars offer versatility and durability for various applications. Customization options include braiding density, wire diameter, and length, allowing us to meet specific customer requirements. Trust us for reliable and robust braided copper busbars that deliver superior performance in demanding environments.
| Item type | Braided copper busbar |
|---|---|
| Material Standard | GB : T2 Copper with Min. 99.9% DIN: E-Cu58 (Number: 2.0065) EN: Cu-ETP ( Number: CW004A) ISO: Cu-ETP UNS: C11000 JIS: C1100 BS: C101 |
| Copper Diameter | 0.15mm (conventional), can be customized with 0.05, 0.07, 0.10, 0.12, 0.19, 0.20, 0.25, 0.39mm and other copper braided wires. |
| Surface Treatmentz | Copper braid part:Copper braided wire can be divided into bare copper and tin plated.
Copper connection at both ends: can be silver plated, tin plated, zinc plated, nickel plated, gold plated. |
| Salt Spray Testing | In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest |
| Bending Testing | Bend 10000 times in 15 radian angle without breakage or fracture. |
| Conventional copper braided wire cross-sectional area: | single layer 1.5mm2—150mm2 (multi-layer braided wire can be customized, stacking up to 30,000 square meters) |
Leading Braided Copper Busbar Manufacturer
As a manufacturer of braided copper busbars, our factory is dedicated to delivering high-quality, flexible, and reliable solutions for various electrical applications. Our braided copper busbars are engineered to provide exceptional electrical conductivity and flexibility, making them ideal for dynamic and high-vibration environments such as electrical cabinets, switchgear, and grounding systems.
Our braided copper busbars feature finely woven copper strands that ensure excellent electrical performance and durability. The flexibility of these busbars allows for easy installation and adaptation to complex layouts, reducing mechanical stress on connected components. Additionally, our products offer superior resistance to fatigue and thermal cycling, ensuring long-lasting performance even under demanding conditions.
Our factory is committed to customer satisfaction by providing timely delivery, exceptional product quality, and comprehensive support. Choose our braided copper busbars to benefit from our expertise, precision engineering, and commitment to excellence. Trust our factory to deliver reliable and efficient solutions for your electrical connectivity needs.
Braided Copper Busbars Classification:

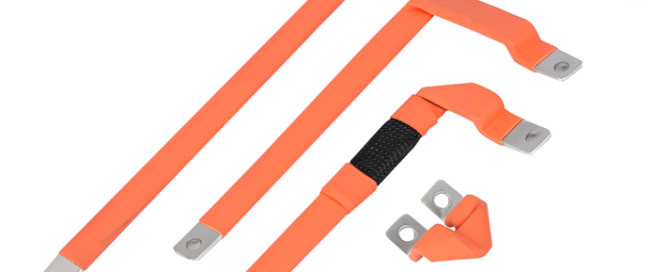

Single Layer Flexible Copper Busbars: Consist of a single layer of copper, providing flexibility for bending in one direction.
Multi-Layer Flexible Copper Busbars: Comprised of multiple layers of copper sheets laminated together, they offer enhanced flexibility for bending in multiple directions.
Insulated Flexible Copper Busbars: Covered with insulating materials such as PVC or Kapton to prevent electrical short circuits and improve safety.
Braided Flexible Copper Busbars: Constructed by braiding multiple copper wires together, providing high flexibility and durability.
Proper insulation and grounding are essential when installing braided copper busbars to prevent electrical hazards. Additionally, care should be taken to avoid overloading or overheating the busbars.
