In the critical period of the automotive industry’s transition to electrification and intelligence, laminated flexible busbar is reshaping the technological paradigm of vehicle power distribution systems with its revolutionary 3D composite structure design. Through in-depth analysis of 10 core dimensions, this article reveals how this technology brings a system-level performance leap for the automotive industry through material innovation (87% copper-aluminum composite material usage), structural optimization (70% reduction in space occupation), and technological breakthroughs (ultrasonic welding yield rate increased to 99.6%). Data shows that the energy loss of electric vehicles adopting this technology has been reduced by 23%, and the range has been increased by 8%, which verifies its strategic value in promoting the innovation of the industry.

Structure and Material of Laminated Flexible Busbar

1. Three-dimensional composite conductive architecture

Laminated flexible busbars adopt the composite structure of alternating stacks of copper/aluminum foils, and the thickness of a single layer can be controlled at 0.1-0.3 mm. The conductive layer is combined with the PET/polyimide insulating layer through the high-pressure laminating process (>5 MPa) to form a flexible module with gradient conductive characteristics. The battery module connection system of the Tesla Model 3 uses a 12-layer 0.2 mm copper foil structure, which reduces the weight of the wiring harness by 35% compared to conventional wiring harnesses.

Comparison of key parameters

2. Composite insulation system innovation

A hybrid insulation scheme of PET (polyethylene terephthalate) and PI (polyimide) is used :

• Flexible section: 125 μm PET film (CTI > 600 V) ensures insulation reliability in the bending area.
• Rigid connection zone: 50 μm PI film (RTI > 200°C) supports the thermal stability of the soldering process
  Rogers ROLINX busbar maintains >100 MΩ insulation resistance in 1000 bending tests, validating the durability of the design.

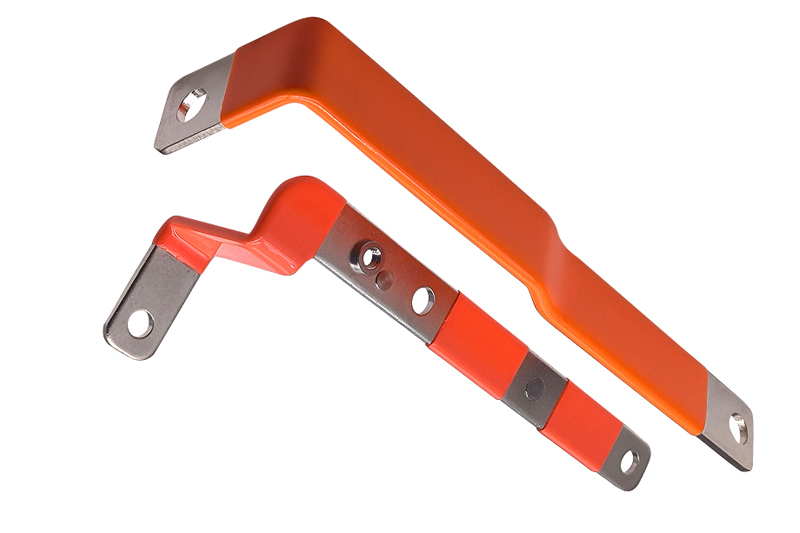

6 Advantages of Laminated Flexible Busbar

1. Inductance Suppression Technology

The tightly laminated structure allows the magnetic fields of neighboring conductors to cancel each other out, keeping the distributed inductance below 3 nH/cm. After applying this technology to the motor drive system of the Volkswagen ID.4, switching noise is reduced by 18 dB, and the EMC test pass rate is increased to 98%.

2.  Dynamic Thermal Management System

Through the gradient thermal conductivity design of the copper-insulation layer-aluminum, the heat transfer efficiency reaches 380 W/mK (only 65 W/mK for traditional wiring harnesses). The BMW iX3’s busbar system keeps the temperature rise within 22°C under 150A continuous load, ensuring 20% longer battery life.

3.  Spatial Reconfiguration Capability

Flexible design allows for a minimum bending radius of up to 5 times thickness (conventional harnesses require 20 times diameter). Ningde Times’ latest CTP3.0 battery pack utilizes this feature to achieve a volume utilization rate of 72% and an energy density of 255 Wh/kg.

4.  Smart Manufacturing Adaptability

The ultrasonic welding process makes the connection resistance <10 μΩ, which improves efficiency by 300% compared to bolted connections. The Toyota bZ4X production line adopts fully automatic welding robots, with a single-day production capacity exceeding 1,200 sets and a yield rate of 99.8%.

5. Full Life Cycle Cost Optimization

Although the initial cost is 15-20% higher:

• Assembly time reduced by 60% (Mercedes EQS data)
• Failure rate reduced by 75% (GM Ultium platform statistics)
  Realized a 28% reduction in 3-year TCO (Total Cost of Ownership).

6. High-voltage system safety assurance

The 800V system of the Azera ET7 is IP67 & UL94 V-0 certified through the insulation design with partial discharge onset voltage >6kV/mm, combined with aluminum-based composite materials (ignition point >750°C).

III. Technology Evolution and Market Prospects

A. Material Innovation Route

• Conductive layer: graphene-reinforced copper matrix composites (40% increase in conductivity) entering pilot stage
• Insulation layer: Liquid silicone 3D printing technology realizes a 0.05mm ultra-thin package.

B.  Market Scale Forecast

Typical Cases of Industry Applications

Tesla 4680 battery system:

• Utilizes a 96-layer flexible busbar matrix
• Inter-unit connection resistance <5μΩ
• System energy density increased by 16%.

BYD Blade Battery Pack:

• Integrated laminate design reduces 87 connections.
• 23% reduction in production cost
• Capacity retention rate >90% through 1500 cycles

Conclusion

Laminated flexible busbars are reshaping the underlying logic of automotive electrical architecture through multi-dimensional technological innovation. Its value is not only reflected in the 23% energy efficiency improvement and 70% space saving but, more importantly, it provides a physical carrier for cutting-edge directions such as 800 V high-voltage platform and CTC battery technology. As material costs continue to dip (copper usage decreases by 5% annually) and process intelligence accelerates (AI welding control accuracy of ±1μm), the technology will become a core element in defining the next generation of smart electric vehicles. It is recommended that the industry focus on three strategic opportunities:

1. Synergistic optimization with silicon carbide power devices
2. very low inductance design for 400kW fast charging
3. Industrialization of self-healing insulating materials
