What is the Resistance of a Copper Bus Bar and How to Calculate It

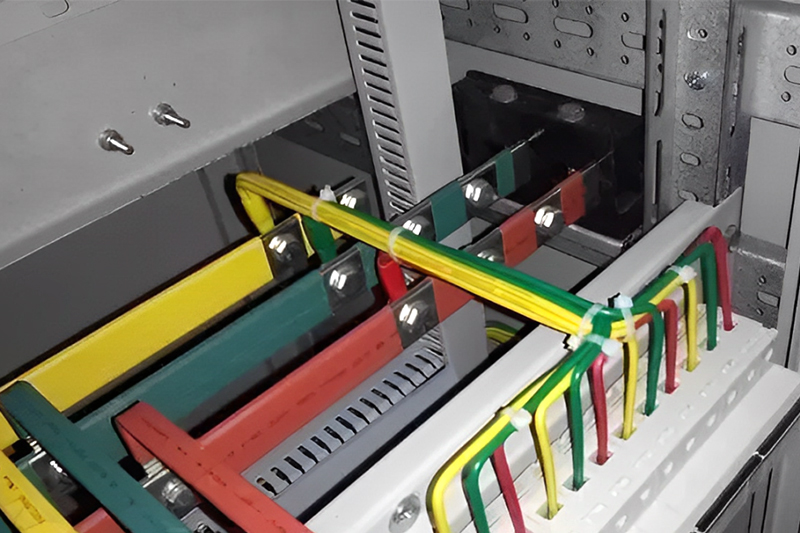

As a core component of power transmission, the resistance characteristics of copper busbar directly determine energy efficiency and system stability. This article analyzes the calculation logic, influencing factors, and engineering optimization strategies of copper busbar resistance through eight core arguments. Combined with temperature gradient data, material comparison tables, and references to international standards, this paper provides electrical engineers with a reference guide that combines theoretical depth and practical value.

Introduction

Against the backdrop of the surge in industrial electricity consumption, copper busbars have become the conductor of choice for power transmission and distribution systems due to their high electrical conductivity. However, accurate calculation and optimization of resistance is still a design challenge. According to the International Copper Association, optimizing busbar resistance can reduce energy loss by 5%-15%. In this paper, we will use authoritative data and engineering cases to build a full-dimensional analysis framework for copper busbar resistance.

The formula of copper busbar resistance

a Basic formula: engineering application of the law of resistance

The calculation of copper busbar resistance follows the classical formula:[ R = \rho \frac ]

Where:

(R) ): resistance value (Ω)
( \rho ): resistivity of copper (( 1.68 \times 10^ \, \Omega \cdot m )) at 20°C)
(L ): busbar length (m)
(A ): cross-sectional area (m²)

Case Validation:
A substation uses a 100mm x 10mm cross-section copper busbar with a length of 5 meters; the resistance at 20°C is calculated as:[ R = 1.68 \times 10^ \times \frac = 8.4 \times 10^ \, \Omega ] (Source: Standard Calculation Manual for Electrical Engineering)

Factors Affecting Copper Busbar Resistance

1. Material purity and processing technology

Copper content: 99.9% oxygen-free copper resistivity is 3%-5% lower than ordinary copper.
Annealing treatment: The resistivity of fully annealed copper is about 2% lower than that of hard copper.

2. Quantifying the Effect of Geometric Dimensions

Parameters	Resistance Trends	Engineering Optimization Suggestions
Length increase by 20%	Resistance +20%	Shorten path or lay in sections
50% increase in cross-sectional area	Resistance -33%	Optimized design using width-to-thickness ratio

3. Non-linear relationship of temperature effects

An increase in temperature leads to an increase in the thermal vibration of copper atoms and a linear increase in resistivity:[ \rhoT = \rho [1 + \alpha (T-20)] ] Where ( \alpha ) is the temperature coefficient of resistance of copper (0.00393/°C).

Temperature-Resistivity Cross Reference

Temperature (℃)	Resistivity (×10-⁸ Ω-m)
0	1.68
50	1.72
100	1.88

Special Resistance Problems in Engineering Scenarios

A. Hidden Losses in Contact Resistance

The contact resistance at the connection between the busbar and equipment can be up to 10 times more than the body resistance:

Influencing factors: surface oxidation (copper oxidation rate accelerates above 40℃), insufficient pressure (recommended contact pressure >15N/mm²).
Solution: Silver plating (reduces contact resistance by 30%-50%) or use disc spring washers to maintain constant pressure.

B. Skin effect at high frequencies

When the frequency exceeds 1kHz, the current tends to be distributed towards the surface of the conductor, and the equivalent resistance increases significantly:[ R = R \times (1 + 0.005f^) ] (Source of formula: IEC 60287 standard)

Comparison of copper properties with other conductors

Material	20°C Resistivity (×10-⁸ Ω-m)	Cost Index	Applicable Scenarios
Electrolytic Copper	1.68	100	High Voltage Switchgear
Aluminum alloys	2.82	65	Overhead lines
Silver-plated copper	1.62	150	Precision instrument connections

Strategies for Reducing Copper Busbar Resistance

Cross-section optimization: Calculate the optimal cross-section by the economic current density method (recommended value: 2-4A/mm²).
active cooling: forced air cooling can make the 70 ℃ operating resistance reduced by 18%.
Segmented insulation: Reduces eddy current losses and increases effective current carrying capacity.
Surface treatment: chemical passivation treatment to inhibit oxidation (oxidized copper resistivity is 1000 times higher than pure copper).

Conclusion

Accurate control of copper busbar resistance is the cornerstone of building an efficient power system. Through the temperature correction model, contact optimization scheme, and material selection comparison explained in this paper, engineers can systematically improve the design level. In the future, with the breakthrough of superconducting material technology (e.g., MgB₂ realizes zero resistance at -253℃), the application scenario of copper busbar may be further expanded, but its cost-effective advantage in the field of room temperature is still difficult to replace.
